TriLattice

gistfile1.md

GLSL to Unity Shader Convert

Original GLSL keijiro/ShaderSketches/Fragment/TriLattice.glsl

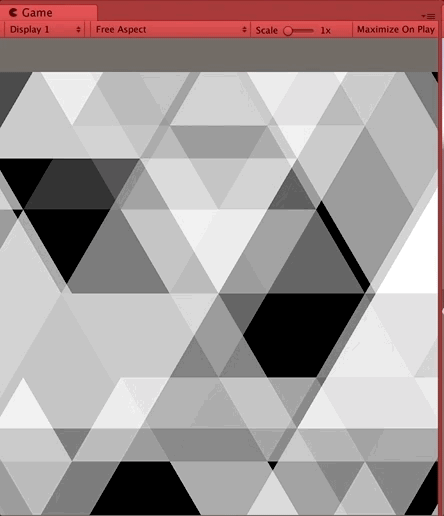

Unity Shader

How

   1. Convert Functions Properties GLSL to Unity One. List here.

  * GLSL SandboxをUnityに移植する方法その1 - 渋谷ほととぎす通信
  * opengl:glsl_hlsl HYPERでんち

Todo

   * half fixed float more proper.

gistfile1.shader

Shader "Unlit/Glsl1"
{
    Properties
    {
    }

    SubShader
    {
       Tags { "RenderType"="Opaque" }
       LOD 100

       Pass
       {
           CGPROGRAM
           #pragma vertex vert_img
           #pragma fragment frag

           #include "UnityCG.cginc"

            float rand(half2 uv)
            {
                return frac(sin(dot(uv, half2(12.9898, 78.233))) * 43758.5453);
            }

            half2 uv2tri(half2 uv)
            {
                float sx = uv.x - uv.y / 2; // skewed x
                float sxf = frac(sx);
                float offs = step(frac(1 - uv.y), sxf);
                return half2(floor(sx) * 2 + sxf + offs, uv.y);
            }

            fixed4 tri(half2 uv)
            {
                float sp = 1.2 + 3.3 * rand(floor(uv2tri(uv)));
                float time = _Time * 30;
                return max(0, sin(sp * time));
            }

           //float4 frag (v2f_img i) : SV_Target
           fixed4 frag (v2f_img i) : SV_Target
           {
                fixed2 resolution = _ScreenParams;
                half2 uv = (i.uv*resolution.xy - resolution.xy / 2) / resolution.y;
                float time = _Time * 30;
                float t1 = time / 2;
                float t2 = t1 + 0.5;

                float c1 = tri(uv * (2 + 4 * frac(t1)) + floor(t1));
                float c2 = tri(uv * (2 + 4 * frac(t2)) + floor(t2));
                float a = lerp(c1, c2, abs(1 - 2 * frac(t1)));
                //return float4(a,a,a,a);
                return fixed4(a,a,a,a);
            }
            ENDCG
       }
   }
}

TriLattice.glsl

#version 150

uniform float time;
uniform vec2 resolution;
out vec4 fragColor;

float rand(vec2 uv)
{
    return fract(sin(dot(uv, vec2(12.9898, 78.233))) * 43758.5453);
}

vec2 uv2tri(vec2 uv)
{
    float sx = uv.x - uv.y / 2; // skewed x
    float sxf = fract(sx);
    float offs = step(fract(1 - uv.y), sxf);
    return vec2(floor(sx) * 2 + sxf + offs, uv.y);
}

float tri(vec2 uv)
{
    float sp = 1.2 + 3.3 * rand(floor(uv2tri(uv)));
    return max(0, sin(sp * time));
}

void main(void)
{
    vec2 uv = (gl_FragCoord.xy - resolution.xy / 2) / resolution.y;

    float t1 = time / 2;
    float t2 = t1 + 0.5;

    float c1 = tri(uv * (2 + 4 * fract(t1)) + floor(t1));
    float c2 = tri(uv * (2 + 4 * fract(t2)) + floor(t2));

    fragColor = vec4(mix(c1, c2, abs(1 - 2 * fract(t1))));
}
